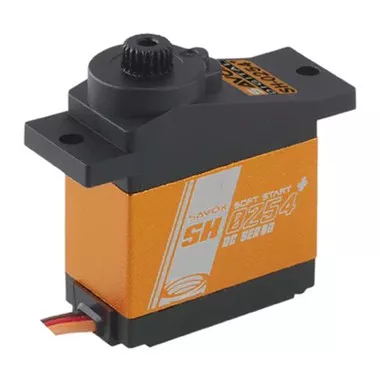

The Savox SH-0254 Plus micro, digital servo has plenty of torque and uses a combination of industrial plastic and metal gears for added durabilty and smoothness.
“Plus” series servos feature Soft Start and Sanwa SSR compatibility.
Features:
Aluminum middle case allows for cooler operating temperatures.
Industrial plastic and metal gear train ensures durability and longevity.
Ideal for small planes, and 450 size helicopters.
Specifications:
Torque @4.8v – 3.1kg/43.1oz-in
Torque @6v – 3.9kg/54.2oz-in
Speed @4.8v – 0.16 sec/60 deg
Speed @6v – 0.13 sec/60 deg
Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
Weight: 15.8g
Note: This servo can be upgraded to metal gears by using the gear set for SH0255MG
Operating Temperature: 14° – 122°F (-10° – 50°C)
Running Current (no load): 180mA @4.8V, 240mA @6.0V
Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 1BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 750 → 2250 µ second
Maximum Travel: Appx 145° (750 → 2250 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
