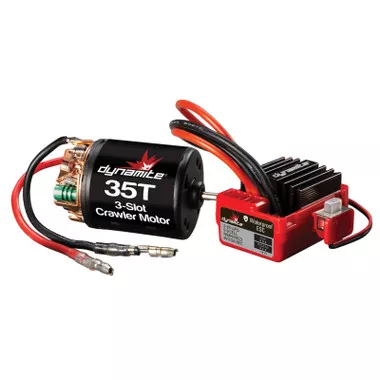

This Dynamite® brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features “On the Fly” adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC’s are available separately.
Component Specifications
Motor:
Motor dimensions: 36mm dia x 53mm L
Shaft dimensions: 1/8”/3.12mm x 12.5mm
Input voltage limit: 2S-3S LiPo/6-9cell NiMH
Bearings/Bushings: Ball bearings
ESC:
Input Voltage: 2-3S LiPo, 6-9 Cells NiMH/NiCd
Size: 46.5x34x28.5mm
Weight: 68g
Motor Limit: >12T 2S/>18T 3S
On-Resistance FET: .002
Continuous current: 40A
Rated/Peak Current: 180A
Braking Current: 90A
BEC Voltage: 6.0V 3.0A Peak
Connector: IC3
PWM Frequency: 1KHz
Product Specifications
Adjustable TimingYes
BrakesElectronic
ProgrammableYes
BEC Continous Current6V/3A
Product WeightESC 2.4oz (68g) with wires
Shaft Diameter1/8″ (3.2mm)
BECYes
BEC Voltage6V
Input Voltage7.2 – 11.1V
Product HeightESC 1.1″ (28.5mm)
BEC TypeShared between receiver, auxillary light ioutput and cooling fan
Motor DesignInrunner
Turns35T
Outer Diameter1.4 in (36mm)
Product WidthESC 1.3″ (34mm)
Connector TypeIC3
Product LengthESC 1.8″ (46.5mm)
Bushing Or BearingBearing
ForwardYes
ReverseYes
