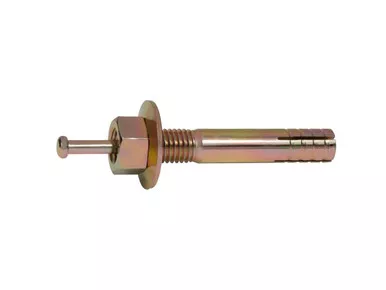

5/8″ x 4-3/4″ Strike Anchor, 25/Box

in hot sale
Sku: SA58434

$74.38 Save:$49.00(40%)

Category:
Description

Products Features

  • POSITIVE DRIVE:  Use a hammer to drive the nail to expand the anchor
  • POSITIVE SETTING:  When the head of the nail meets the anchor body then the anchor is set
  • CAN SET​ ​EMBEDMENT​ ​DEPTH:  Provides uniformity and consistent look when all the anchors are set
  • SLOTTED BODY IS PRECISION MATCHED TO TAPERED EXPANSION NAIL:  Ensures that the anchor is uniformly expanded to provide consistent holding​ ​values in concrete
  • NUTS AND WASHERS INCLUDED:  Ready to install; creates ​simple and fast installation process

Products specifications

Bit Size  5/8″
Box Qty  25
Minimum Embedment  2-1/2″
Wrench Size For Nut  15/16″
Primary  Concrete only
Minimum Edge Distance  3-1/8″
Maximum Fixture Thickness  1-5/8″
Minimum Fixture Hole Diameter (In Place)  3/4″
Minimum Fixture Hole Diameter (Hole Spotted)  5/8″
Brand Name  CONFAST®
Thread Length  1-1/2″
2000 PSI Concrete – Pull-Out (lbs.) *  4050
2000 PSI Concrete – Shear (lbs.) *  4950
Length Measurement  End to End
Diameter  5/8″
Length  4-3/4″
Material  Carbon Steel Yellow Zinc
Environment  Dry
Type  Male

* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working loadInstallation Video Installing a 5/8″ x 4-3/4″ Strike Anchor

  1. Drill a 5/8″ hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. Drill the hole a 1/2″ deeper than the anchorwill penetrate the concrete, making sure the minimum embedment requirements of 2-1/2″ is met.
  3. The hole can be drilled while the fixture is in place. The minimum hole in the fixture for the 5/8″ x 4-3/4″ Strike Anchor is 3/4″.
  4. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  5. Put the nut and washer on the 5/8″ x 4-3/4″ Strike Anchor, making sure the nut is on the last threads; this will protect the threads from damage when the wedge anchor is hammered into the hole and into the concrete.
  6. Insert the anchorthrough the hole in the fixture and into the hole in the base material until the nut and washer are tight against the fixture.
  7. Using a properly sized hammer for the 5/8″ x 4-3/4″ Strike Anchor, set the pin with a number of square and sharp strikes to the head of the pin until the pin is flush with the top of the anchor. There is no need to torque the nut to set the anchor since the anchor is set with the correct set pin.
  8. Always use proper personal protective equipment per manufacturer’s and OSHA instructions.
