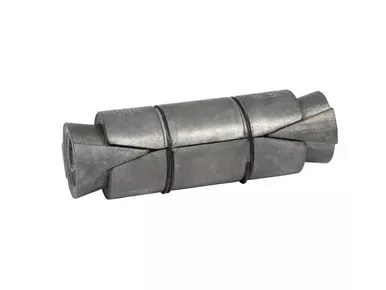

1/2″ Double Expansion Anchor, 20/Box

in hot sale
Sku: DE12

$34.50 Save:$10.00(23%)

Category:
Description

Products Features

  • CORROSION RESISTANT​ ​BODY:  Anchor body can be used in atmospheres where moisture may be present
  • EXPANDS THE WHOLE LENGTH OF ANCHOR:  Performs well in base material of questionable strength
  • INTERNAL THREADS:  Allows for unbolting​ ​for non-permanent fastening applications
  • NATIONAL COARSE THREADS:  Bolts that are required are the most common type available and easily found for purchase
  • EACH DIAMETER COMES IN ONE LENGTH:  Selection is simple process of picking a diameter and then choosing the anchor

Products specifications

Bit Size  7/8″
Box Qty  20
Minimum Embedment  2-1/2″
Thread Type  1/2″ – 13
Minimum Edge Distance  4-3/8″
Minimum Fixture Hole Diameter (In Place)  1″
Minimum Fixture Hole Diameter (Hole Spotted)  1/2″
Inside Anchor Diameter-Bolt Diameter  1/2″
Outside Anchor Diameter  7/8″
Brand Name  CONFAST®
Minimum Spacing  8-3/4″
Maximum Torque  20 ft./lbs.
Bolt Length  Fixture Thickness + Embedment Depth
2000 PSI Concrete – Pull-Out (lbs.) *  1942
Length Measurement  End to End
Diameter  1/2″
Length  2-1/2″
Material  Zamac
Environment  Moist
Type  Female

* Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working loadInstallation Video Installing a 1/2″ Double Expansion Anchor

  1. Drill a 7/8″ hole into the concrete using a carbide-tipped bit that meets ANSI Standards B212.15.
  2. The depth of the hole can be deeper or equal to the minimum embedment depth of 2-1/2″ which is equal to the length of the anchor .
  3. Clean the hole with a wire brush, vacuum, compressed air, or a blow-out bulb.
  4. Insert the anchor with its threaded end first into the hole.
  5. Place the fixture over the 1/2″ Double Expansion Anchor, insert a 1/2″ diameter bolt through the fixture and into the 1/2″ Double Expansion Anchor.
  6. Use a wrench to turn the anchor clockwise until tight or maximum torque value 20 ft. lbs. is reached.
  7. Always use proper personal protective equipment per manufacturer’s and OSHA instructions.
